Russia
6"/50 (15.2 cm) Pattern 1908
152 mm/50 (6") Pattern 1908
Updated 12 August 2012
These guns were designed at the Obukhov factory for the Amur flotilla monitors.   Some sixteen guns were built, but in 1914 twelve of them were removed and installed in the Naval Fortress of Peter the Great on the Hanko peninsula in the Gulf of Finland.  Sixteen additional guns were ordered from the Obukhov factory to replace these, eight to be delivered in 1917 and the remaining eight to be delivered in 1918.  However, due to the Russian Revolution, none of these were delivered and the ones installed in the fortress were captured by the Germans.  As of 1941 there were four guns still remaining on the monitors of the Amur Flotilla.

Actual bore diameter was 152.4 mm (6.0").

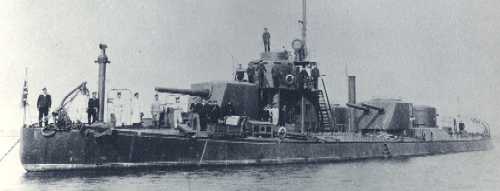

Schkval class Monitor
Photograph from Sudostroevie Magazine
.
Gun Characteristics
.
Designation 6"/50 (15.2 cm) Pattern 1908
152 mm/50 (6") Pattern 1908
Ship Class Used On Schkval class river monitors
Date Of Design N/A
Date In Service 1908
Gun Weight 6.5 tons (6.85 mt)
Gun Length oa 300 in (7.620 m)
Bore Length 294 in (7.468 m)
Rifling Length 240.98 in (6.121 m)
Grooves 36
Lands N/A
Twist N/A
Chamber Volume 1,727 in3 (28.3 dm3)
Rate Of Fire 4 rounds per minute
.
Ammunition
.
Type Semi-fixed
Projectile Types and Weights HE mod 1907 - 104.2 lbs. (47.3 kg)
HE mod 1915 - 104.2 lbs. (47.3 kg)
Shrapnel - 91.4 lbs. (41.46 kg)
Bursting Charge HE mod 1907 - 14.1 lbs. (6.4 kg)
HE mod 1915 - 14.6 lbs. (6.6 kg)
Shrapnel - 1.23 lbs. (0.56 kg)
Projectile Length HE mod 1907 - 24 in (61 cm)
HE mod 1915 - 26.7 in (69 cm)
Shrapnel - 21.7 in (55 cm)
Propellant Charge HE mod 1907 - 37.5 lbs. (17 kg)
HE mod 1907 (reduced charge) - 15.4 lbs. (7 kg)
HE mod 1915 - 37.5 lbs. (17 kg)
Shrapnel - 28.7 lbs. (13 kg)
Muzzle Velocity HE mod 1907 - 2,700 fps  (823 mps)
HE mod 1907 (reduced charge) - 1,640 fps (500 mps)
HE mod 1915 - 2,700 fps  (823 mps)
Shrapnel - 2,700 fps  (823 mps)
Working Pressure 2,325 kg/cm2
Approximate Barrel Life 400 rounds
Ammunition stowage pr gun 208 rounds
.
Range
.
Elevation With 104.2 lbs. (47.3 kg) HE mod 1907 Shell
Range @ 30 degrees
(Max elevation of turret)		 16,010 yards (14,640 m)
Range @ 30 degrees
(reduced charge)		 10,610 yards (9,700 m)
Elevation WIth 104.2 lbs. (47.3 kg) HE mod 1915 Shell
Range @ 30 degrees 19,010 yards (17,385 m)
.
Mount / Turret Data
.
Designation Single Mount
Weight 49 tons (49.2 mt)
Elevation -5 / +30 degrees
Rate of Elevation 3 degrees per second
Train N/A
Rate of Train 1.7 degrees per second
Gun Recoil 14.8 in (37.5 cm)
Loading Angle N/A
.
Data from
"Sovetskie Boevye Korabli 1941-45:  IV Vooruzhnie" (Soviet Warships 1941-45:  Volume IV Armament) by A.V. Platonov
"Entsiklopedia Otechestvennoi Artillerii" (Encyclopedia of Fatherland (Russian) Artillery) by A.V. Shirokorad
---
Special help from Vladimir Yakubov
