Italy (ex-Yugoslavia)
12 cm/46 (4.7") Skoda
Updated 26 May 2012
These Skoda guns were on ex-Yugoslavian destroyers taken over by the Italians during World War II.  These were probably horizontally sliding breech-block guns as were other Skoda weapons.

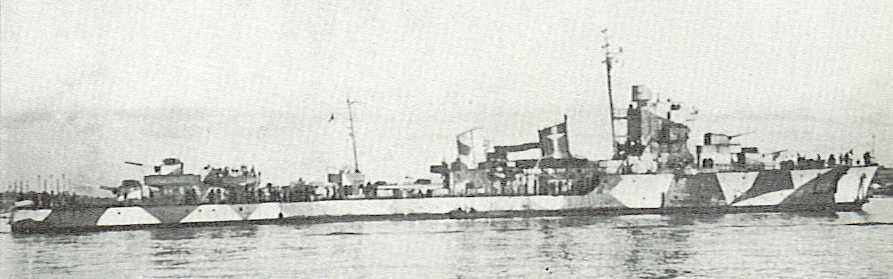

Italian Lubiana (ex-Yugoslovian Ljubljana)
.
Gun Characteristics
.
Designation 12 cm/46 (4.7") Skoda
Ship Class Used On Sebenico (ex-Beograd) and Lubiana (ex-Ljubljana)
Date Of Design N/A
Date In Service 1939
Gun Weight 3.8 tons (3.74 mt)
Gun Length oa about 217 in (5.52 m)
Bore Length N/A
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume N/A
Rate Of Fire 10 rounds per minute (?)
.
Ammunition
.
Type Separate
Projectile Types and Weights HE - 52.9 lbs. (24 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge 17.3 lbs. (7.85 kg)
Muzzle Velocity 2,789 fps (850 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
.
Range
.
Elevation With 52.9 lbs. (24 kg) HE shell
Range @ 35 degrees about 18,000 yards (16,500 m)
.
Mount / Turret Data
.
Designation Beograd (4):  Single Mountings
Weight  N/A
Elevation -10 (?) / +35 degrees
Elevation Rate N/A
Train about +150 / -150 degrees
Train Rate N/A
Gun recoil N/A
.
Data from
"Naval Weapons of World War Two" by John Campbell
"Italian Warships of World War II" by Aldo Fraccaroli
"Destroyers of World War Two:  An International Encyclopedia" by M.J. Whitley
Page History

13 May 2006 - Benchmark
15 May 2010 - Corrected photograph caption
26 May 2012 - Updated to latest template
