Italy
12"/40 (30.5 cm)
Updated 26 May 2012
These were of the Elswick Pattern "I" and were used on Italy's equivalent to a battlecruiser.  This Italian version allowed all-around loading and the mountings were electrically powered.

After these ships were scrapped, their guns were reused on floating batteries.

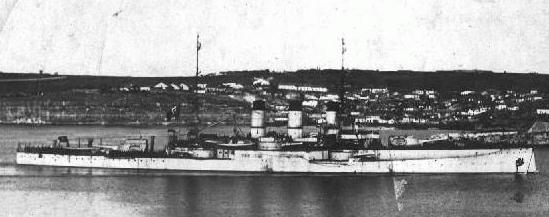

Battleship Roma about 1910
12" (30.5 cm) guns are in single turrets on the bow and stern
.
Gun Characteristics
.
Designation 12"/40 (30.5 cm)
Ship Class Used On Benedetto Brin and Regina Elena Classes
Pontoons GM191 and 192
Date Of Design N/A
Date In Service 1908
Gun Weight 50.8 tons (54.3 mt)
Gun Length oa N/A
Bore Length 480.0 in (12.192 m)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume N/A
Rate Of Fire about 1 round per minute
.
Ammunition
.
Type Bag
Projectile Types and Weights APC - 919 lbs. (417 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge 194 lbs. (88 kg)
Muzzle Velocity 2,559 fps (780 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
.
Range
.
Elevation With 919 lbs. (417 kg) AP shell
Range @ 20 degrees about 21,870 yards (20,000 m)
.
Mount / Turret Data
.
Designation Single Turrets
  Regina Elena (2)

Twin Turrets
  Benedetto Brin (2)
Weight  N/A
Elevation about -5 / +20 degrees
Elevation Rate N/A
Train about +150 / -150 degrees
Train Rate N/A
Gun recoil N/A
Loading Angle N/A
Note:  These mountings were generally similar in design to the British 12" (30.5 cm) BVI mountings, although the Italian mountings allowed all-around loading and those for the Regina Elena class were electrically powered, used springs for the run out and elevation was by arc and pinion gear.
.
Data from
"Naval Weapons of World War Two" by John Campbell
"Italian Warships of World War II" by Aldo Fraccaroli
"The Big Gun:  Battleship Main Armament 1860-1945" by Peter Hodges
---
Special help by Cliff McMullen
