Britain
6-pdr / 10cwt [2.244"/47 (57 mm)] QF Mark I
Updated 15 December 2013
These were coast defense guns developed by the Army for use against German Schnellboots ("E-boats") and other small craft.  Twenty-two of them were transferred to the Navy and used on old destroyers detailed for coastal escort duties.

Constructed of A tube, part length jacket and breech ring.  Used a semi-automatic sliding breech block.

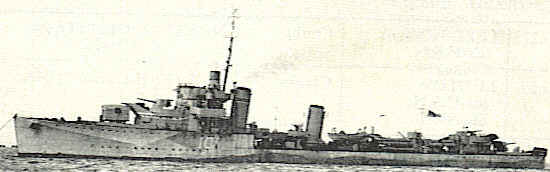

HMS Montrose, with twin 6-pdr mount replacing bow 4.7" (12 cm) gun

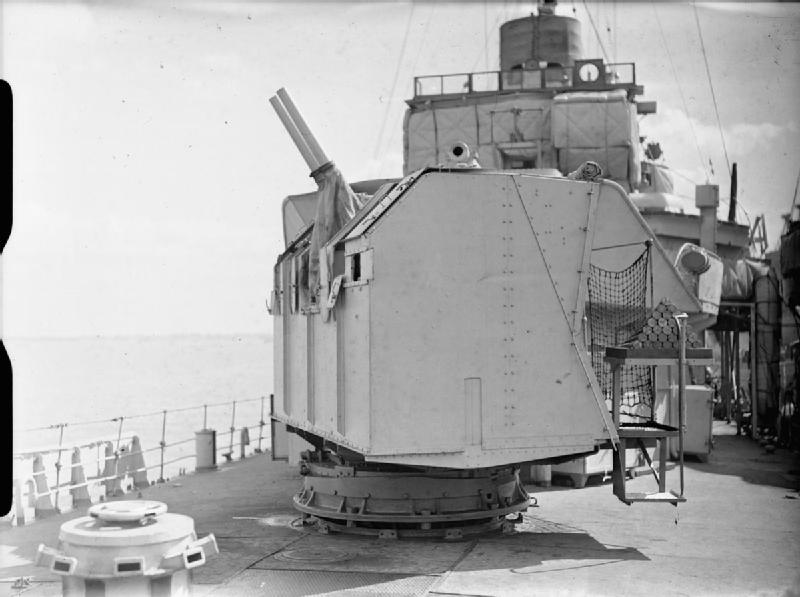

Side view of twin 6-pdr on HMS Mackay
IWM photograph A 18740

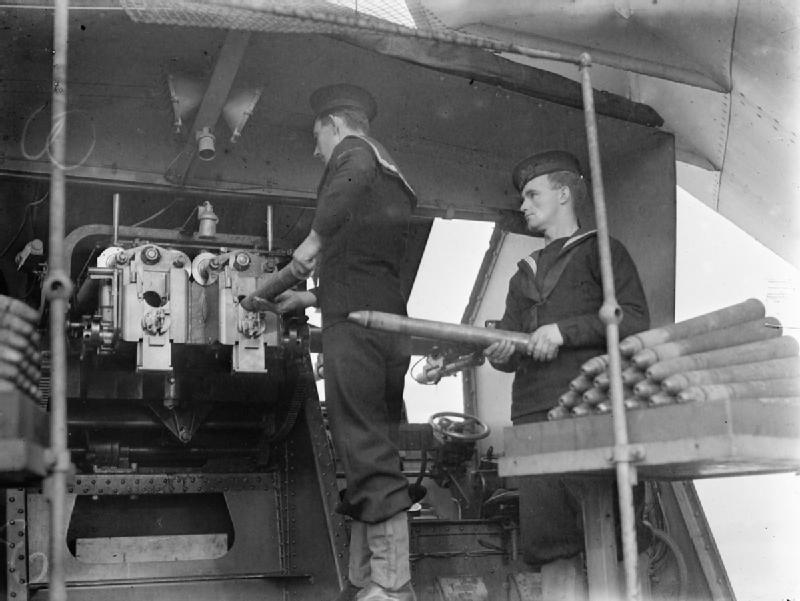

Loading drill on HMS Mackay
IWM photograph A 20313
.
Gun Characteristics
.
Designation 6-pdr / 10cwt QF Mark I
Ship Class Used On Campbell, Mackay, Montrose, Whitshed, Wivern, Worcester, Walpole and Windsor
Date Of Design N/A
Date In Service 1941 in naval service
Gun Weight 1,060 lbs. (481 kg)
Gun Length oa 109.7 in (2.787 m)
Bore Length 105.5 in (2.679 m)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume 73.5 in3 (1.2 dm3)
Rate Of Fire 18 rounds per minute
.
Ammunition
.
Type Fixed
Weight of Complete Round N/A
Projectile Types and Weights HE - 6.28 lbs. (2.85 kg)
HE-T - 6.54 lbs. (2.97 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge 1.27 lbs. (0.576 kg) N 045
Muzzle Velocity HE - 2,386 fps (727 mps)
HE-T - 2,356 fps (718 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
Note:  Outfits were half HE and half HE-T (tracer).
.
Range
.
World War I With 6.28 lbs. (2.85 kg) HE Shell
Range @ 45 degrees 11,300 yards (10,330 m)
.
Mount / Turret Data
.
Designation Twin Mounts
  Coastal Defense:  Mark I
  Destroyers (1):  Mark I*
Weight  N/A
Elevation -10 / +80 degrees
Elevation Rate Manually operated, only
Train 360 degrees
Train Rate Manually operated, only
Gun recoil 12 in (30.5 cm)
Note:  The naval mounting had a more extensive shield than did the coast defense mounting.
.
Data from
"Naval Weapons of World War Two" by John Campbell
"Warships of World War II" by H.T. Lenton and J.J. Colledge
Special help from Dave Alton and Richard Worth
