Austria-Hungary
7 cm/50 (2.75") K10 and K16 Skoda
Updated 12 October 2013
A widely used weapon employed in both the anti-torpedo boat and anti-aircraft roles in easily removable mounts.  Some of these guns were mounted on top of main gun turrets where they could be coupled with the 30.5 cm guns for gunnery practice.  The K16 (also known as BAG) was slightly different to suit an anti-aircraft mounting but had the same ballistic characteristics as the K10.

Seven of these guns were allocated for coast defense and eight more were given to the Army.

Actual bore diameter was 6.6 cm (2.6").

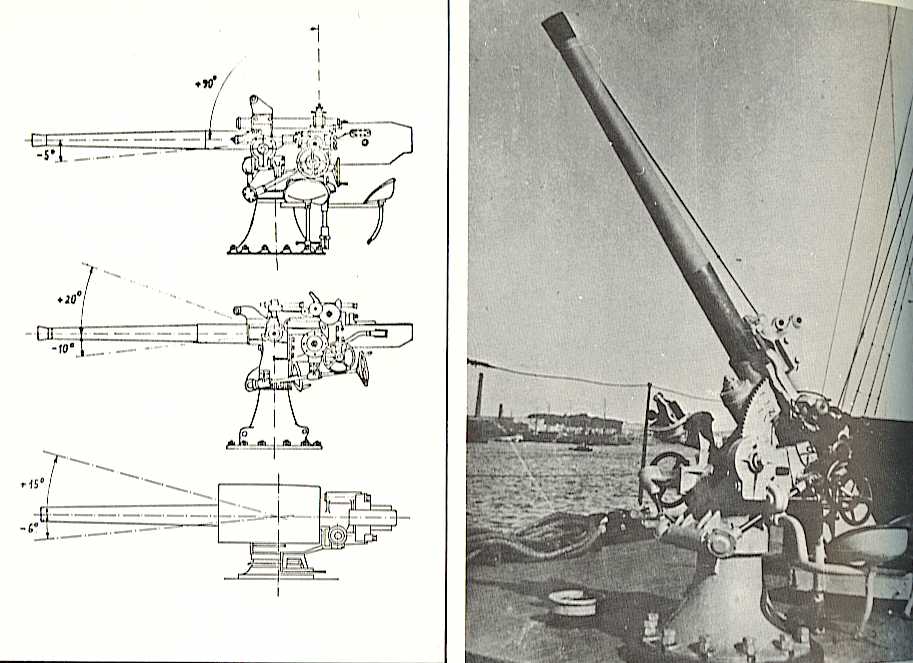

Left:  Sketches of 7 cm gun in anti-airship, anti-torpedo boat and casemate mountings
Right:  Anti-airship mounting on a cruiser
Collection Pavlik photograph

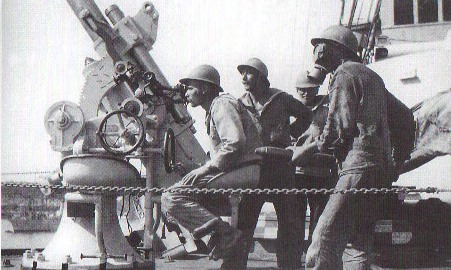

7 cm being used as an AA weapon
Note the sailor with the projectile and gas mask at right
.
Gun Characteristics
.
Designation 7 cm (2.75")/50 K10 and K16 Skoda
Ship Class Used On Viribus Unitis, Erzherzog Karl and Sankt Georg Classes
Date Of Design 1910 / 1916
Date In Service 1912 / 1917
Gun Weight 1,146 lbs. (520 kg) without breech
Gun Length oa about 138 in (3.500 m)
Bore Length N/A
Rifling Length N/A
Grooves (20) 0.030 in D x 0.244 W (0.75 mm D x 6.2 mm W)
Lands N/A
Twist RH 1 in 30
Chamber Volume N/A
Rate Of Fire 15 to 20 rounds per minute
.
Ammunition
.
Type Fixed
Projectile Types and Weights HE - 9.9 lbs. (4.5 kg)
Bursting Charge 3.5 lbs. (1.6 kg)
Propellant Charge 3.5 lbs. (1.6 kg)
Muzzle Velocity 2,887 fps (880 mps)
Working Pressure 18.4 tons/in2 (2,900 kg/cm2)
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
.
Range
.
Elevation With 9.9 lbs. (4.5 kg) AP Shell
Range @ 20 degrees 8,750 yards (8,000 m)
AA Ceiling 16,400 feet (5,000 m)
.
Mount / Turret Data
.
Designation Single Mounts:  Anti-torpedo boat, casemate and anti-airship types
   Viribus Unitis (12) anti-torpedo boat and (4) anti-airship
   Radetzky (4)
   Monarch (1)
Weight N/A
Elevation Anti-torpedo boat:  -10 / +20 degrees
Casemate:  -6 / +15 degrees
Anti-airship:  -5 / +90 degrees
Elevation Rate N/A
Train 360
Train Rate N/A
Gun recoil N/A
Loading Angle N/A
.
Data from
"Naval Weapons of World War One" by Norman Friedman
"Austro-Hungarian Battleships 1914-18" by Ryan Noppen
"The Viribus Unitis Class" article in "Warship Volume II" by Friedrich Prasky
and
Tony DiGiulian's personal data files
